Hot Rolled Steel Plate

Application:

Used for ordinary flat plate, shallow punching, drawing and coating substrate as tinplate, the main terminal products are small household appliances, oil drums, fire equipment, hardware products, security doors, metal mesh, packaging, office furniture and so on.Full hard material (SPCC-1B, SPCC-SD) is widely used for based material of Galvanized, Galvalume and pre-painted coil, the final intended use is corrugation.

Specifications:

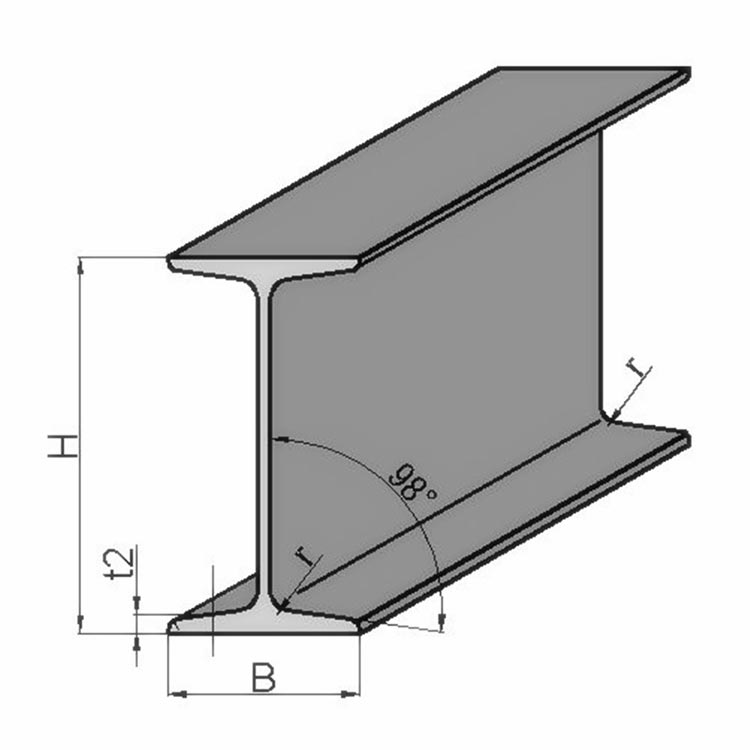

	H*B	H*B	t1	t2	KG/M
HW	100*100	100*100	6	8	17.2
	125*125	125*125	6.5	9	23.8
	150*150	150*150	7	10	31.5
	175*175	175*175	7.5	11	40.2
	200*200	200*200	8	12	49.9
	250*250	244*252	11	11	64.4
	250*250	250*250	9	14	72.4
	300*300	300*300	10	15	94
	350*350	350*350	12	19	137
	400*400	400*400	13	21	172
	150*100	150*100	6	9	20.7
	200*150	194*150	6	9	30.6
	250*175	244*175	7	11	44.1
	300*200	294*200	8	12	56.8
	300*200	298*201	9	14	65.4
	350*250	340*250	9	14	79.7
HM	400*300	390*300	10	16	107
	450*300	440*300	11	18	124
	500*300	482*300	11	15	114
	500*300	488*300	11	18	128
	600*300	582*300	12	17	137
	600*300	588*300	12	20	151
	150*75	150*75	5	7	14.3
	175*90	175*90	5	8	18.2
	200*100	200*100	5.5	8	21.3
	250*125	248*124	5	8	25.7
	250*125	250*125	6	9	29.6
	300*150	300*150	6.5	9	36.7
	350*175	350*175	7	11	49.6
HN	400*200	400*200	8	13	66
	450*200	450*200	9	14	76
	500*200	500*200	10	16	89.6
	600*200	600*200	11	17	106
	700*300	700*300	13	24	185
	800*300	800*300	14	26	210
	900*300	900*300	16	28	243
