Used for ordinary flat plate, shallow punching, drawing and coating substrate as tinplate, the main terminal products are small household appliances, oil drums, fire equipment, hardware products, security doors, metal mesh, packaging, office furniture and so on.Full hard material (SPCC-1B, SPCC-SD) is widely used for based material of Galvanized, Galvalume and pre-painted coil, the final intended use is corrugation.
| MODEL | W | B | C | T | KG/M |
| C80 | 80 | 50 | 20 | 2.25 | 3.886 |
| C80 | 80 | 50 | 20 | 2.5 | 4.318 |
| C80 | 80 | 50 | 20 | 2.75 | 4.749 |
| C80 | 80 | 50 | 20 | 3 | 5.181 |
| C100 | 100 | 50 | 20 | 2.25 | 4.239 |
| C100 | 100 | 50 | 20 | 2.5 | 4.71 |
| C100 | 100 | 50 | 20 | 2.75 | 5.181 |
| C100 | 100 | 50 | 20 | 3 | 5.652 |
| C120 | 120 | 50 | 20 | 2.25 | 4.592 |
| C120 | 120 | 50 | 20 | 2.5 | 5.103 |
| C120 | 120 | 50 | 20 | 2.75 | 5.613 |
| C120 | 120 | 50 | 20 | 3 | 6.123 |
| C140 | 140 | 50 | 20 | 2.5 | 5.495 |
| C140 | 140 | 60 | 20 | 2.5 | 5.888 |
| C140 | 140 | 50 | 20 | 3 | 6.594 |
| C140 | 140 | 60 | 20 | 3 | 7.065 |
| C160 | 160 | 50 | 20 | 2.5 | 5.888 |
| C160 | 160 | 60 | 20 | 2.5 | 6.28 |
| C160 | 160 | 70 | 20 | 2.5 | 6.673 |
| C160 | 160 | 50 | 20 | 3 | 7.065 |
| C160 | 160 | 60 | 20 | 3 | 7.536 |
| C160 | 160 | 70 | 20 | 3 | 8.007 |
| C180 | 180 | 50 | 20 | 2.5 | 6.28 |
| C180 | 180 | 60 | 20 | 2.5 | 6.673 |
| C180 | 180 | 70 | 20 | 2.5 | 7.065 |
| C180 | 180 | 80 | 20 | 2.5 | 7.458 |
| C180 | 180 | 50 | 20 | 3 | 7.536 |
| C180 | 180 | 60 | 20 | 3 | 8.007 |
| C180 | 180 | 70 | 20 | 3 | 8.478 |
| C180 | 180 | 80 | 20 | 3 | 8.949 |
| C200 | 200 | 50 | 20 | 2.5 | 6.673 |
| C200 | 200 | 60 | 20 | 2.5 | 7.065 |
| C200 | 200 | 70 | 20 | 2.5 | 7.458 |
| C200 | 200 | 80 | 20 | 2.5 | 7.85 |
| C200 | 200 | 50 | 20 | 3 | 8.007 |
| C200 | 200 | 60 | 20 | 3 | 8.478 |
| C200 | 200 | 70 | 20 | 3 | 8.949 |
| C200 | 200 | 80 | 20 | 3 | 9.42 |
| C220 | 220 | 50 | 20 | 2.5 | 7.065 |
| C220 | 220 | 60 | 20 | 2.5 | 7.458 |
| C220 | 220 | 70 | 20 | 2.5 | 7.85 |
| C220 | 220 | 80 | 20 | 2.5 | 8.243 |
| C220 | 220 | 50 | 20 | 3 | 8.478 |
| C220 | 220 | 60 | 20 | 3 | 8.949 |
| C220 | 220 | 70 | 20 | 3 | 9.42 |
| C220 | 220 | 80 | 20 | 3 | 9.891 |
| C240 | 240 | 50 | 20 | 2.5 | 7.458 |
| C240 | 240 | 60 | 20 | 2.5 | 7.85 |
| C240 | 240 | 70 | 20 | 2.5 | 8.243 |
| C240 | 240 | 80 | 20 | 2.5 | 8.635 |
| C240 | 240 | 50 | 20 | 3 | 8.949 |
| C240 | 240 | 60 | 20 | 3 | 9.42 |
| C240 | 240 | 70 | 20 | 3 | 9.891 |
| C240 | 240 | 80 | 20 | 3 | 10.362 |

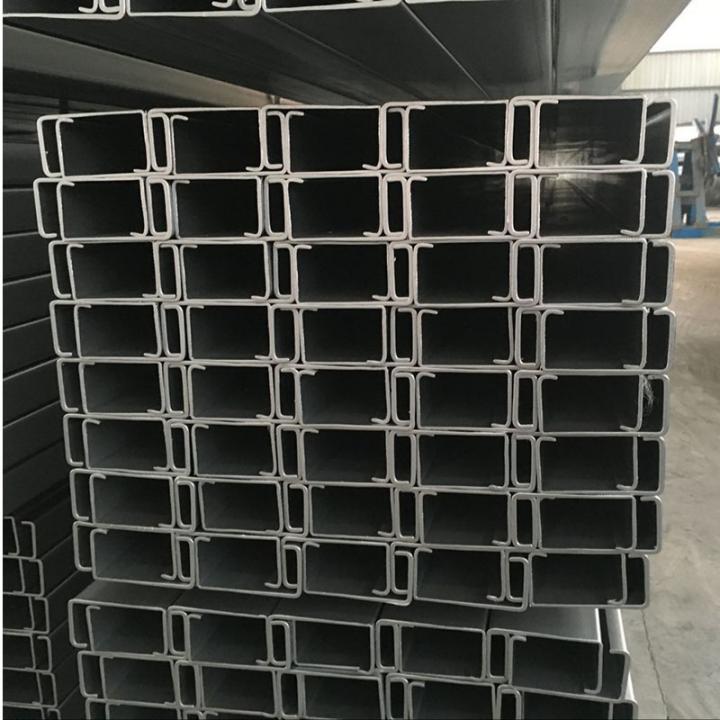

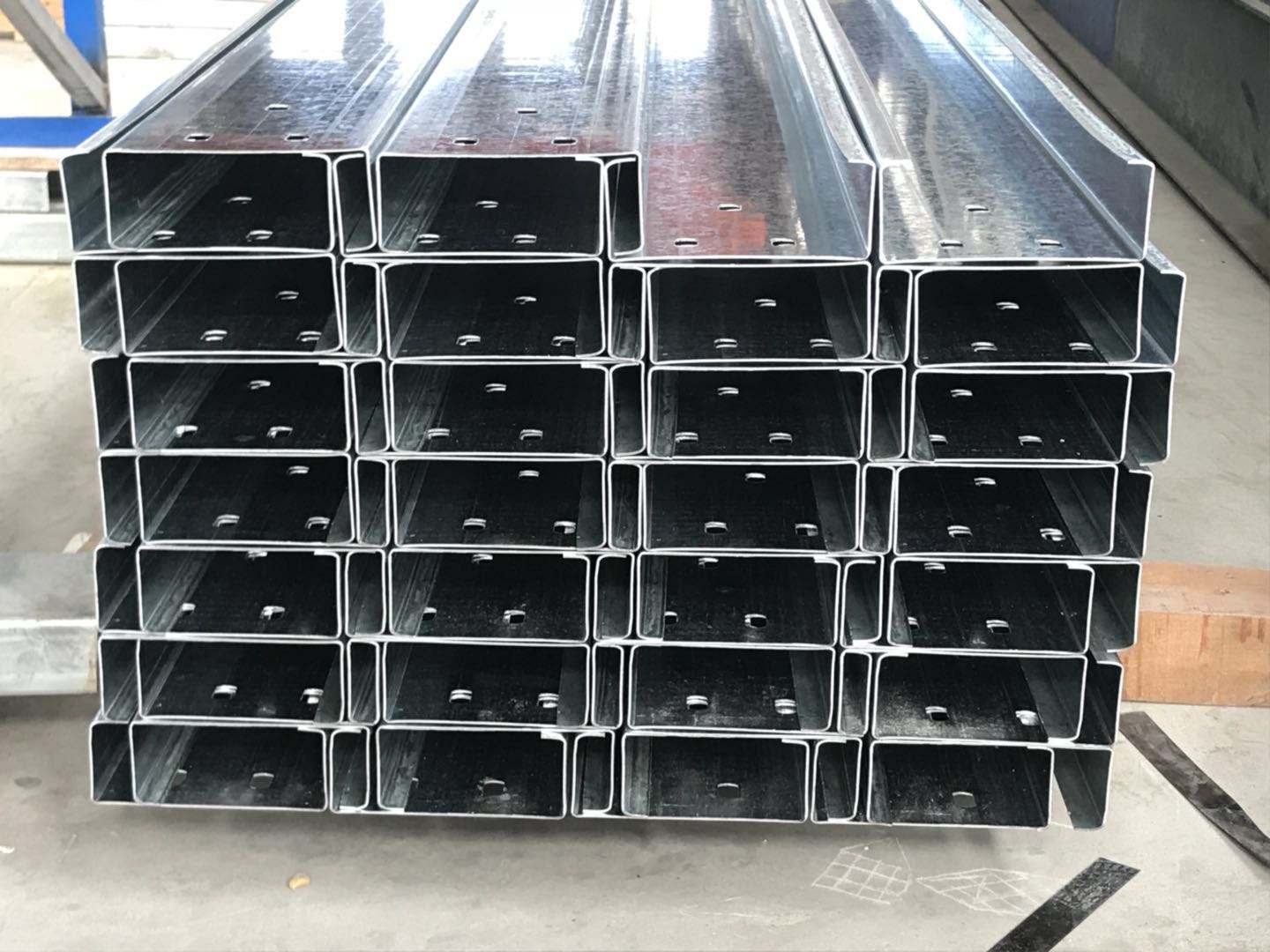

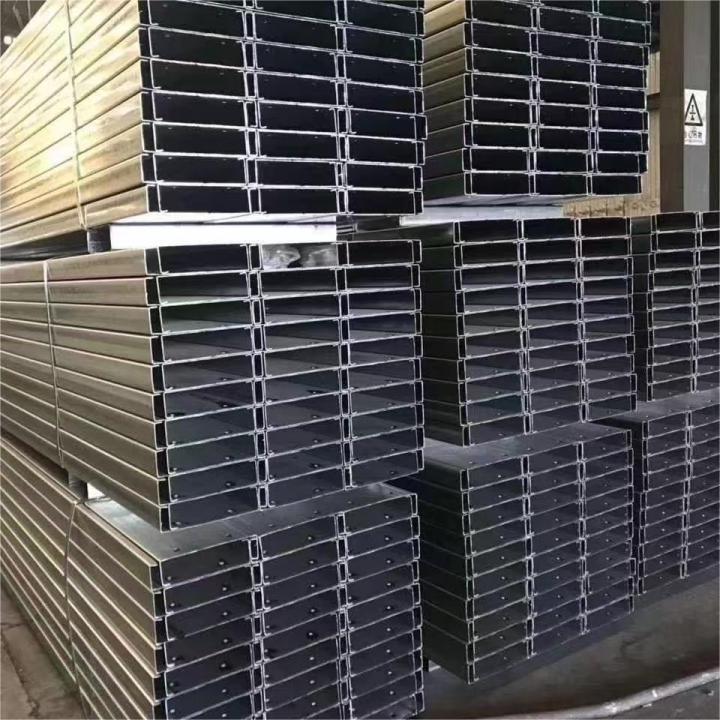

C Purlin
C Purlin
C Purlin
C Purlin
C Purlin
C Purlin
