| EN STANDARD U CHANNEL | |||
| Specification | Web thickness | Flange thickness | Theoretical Weight |
| Depth*flange width | (mm) | (mm) | (kg/m) |
| UPN 80 80*45 | 6 | 8 | 8.64 |
| UPN 100 100*50 | 6 | 8.5 | 10.6 |
| UPN 120 120*55 | 7 | 9 | 13.4 |
| UPN 140 140*60 | 7 | 10 | 16 |
| UPN 160 160*65 | 7.5 | 10.5 | 18.8 |
| UPN 180 180*70 | 8 | 11 | 22 |
| UPN 200 200*75 | 8.5 | 11.5 | 25.3 |
| GB STANDARD U CHANNEL | ||||
| Specification | Web mm | Flange mm | Web thickness | Theoretical Weight (kg/m) |
| 5# | 50 | 37 | 4.5 | 5.438 |
| 6.3# | 63 | 40 | 4.8 | 6.634 |
| 8# | 80 | 43 | 5 | 8.045 |
| 10# | 100 | 48 | 5.3 | 10.007 |
| 12# | 120 | 53 | 5.5 | 12.059 |
| 14A# | 140 | 58 | 6 | 14.535 |
| 14B# | 140 | 60 | 8 | 16.733 |
| 16A# | 160 | 63 | 6.5 | 17.24 |
| 16B# | 160 | 65 | 8.5 | 19.752 |
| 18A# | 180 | 68 | 7 | 20.174 |
| 18B# | 180 | 70 | 9 | 23 |
| 20A# | 200 | 73 | 7 | 22.637 |
| 20B# | 200 | 75 | 9 | 25.777 |
| 22A# | 220 | 77 | 7 | 24.999 |
| 22B# | 220 | 79 | 9 | 28.453 |
| 25A# | 250 | 78 | 7 | 27.41 |
| 25B# | 250 | 80 | 9 | 31.335 |
| 28A# | 280 | 82 | 7.5 | 31.427 |
| 28B# | 280 | 84 | 9.5 | 35.823 |
| 30A# | 300 | 85 | 7.5 | 34.463 |
| 30B# | 300 | 87 | 9.5 | 39.173 |
| 32A# | 320 | 88 | 8 | 38.083 |
| 36A | 360 | 96 | 9 | 47.814 |
| 36B | 360 | 98 | 11 | 53.466 |
| 36C | 360 | 100 | 13 | 59.118 |
| 40A | 400 | 100 | 10.5 | 58.928 |
| 40B | 400 | 102 | 12.5 | 65.208 |
| 40C | 400 | 104 | 14.5 | 71.488 |
| JIS STANDARD U CHANNEL | |||
| Dimension (mm) | T1 | T2 | KG/M |
| 50*25 | 3.00~5.00 | 6 | 2.37~3.46 |
| 75*40 | 3.8 | 7 | 5.3 |
| 75*40 | 4 | 7 | 5.6 |
| 75*40 | 4.5 | 7 | 5.85 |
| 75*40 | 5 | 7 | 6.92 |
| 100*50 | 3.8 | 6 | 7.3 |
| 100*50 | 4.2 | 6 | 8.03 |
| 100*50 | 4.5 | 7.5 | 8.97 |
| 100*50 | 5 | 7.5 | 9.36 |
| 125*65 | 5.2 | 6.8 | 11.66 |
| 125*65 | 5.3 | 6.8 | 12.17 |
| 125*65 | 5.5 | 8 | 12.91 |
| 125*65 | 6 | 8 | 13.4 |
| 150*75 | 5.5 | 7.3 | 14.66 |
| 150*75 | 5.7 | 10 | 16.71 |
| 150*75 | 6 | 10 | 17.9 |
| 150*75 | 6.5 | 10 | 18.6 |
| 200*80 | 7.5 | 11 | 24.6 |
| 250*90 | 9 | 13 | 34.6 |
| 300*90 | 9 | 13 | 38.1 |

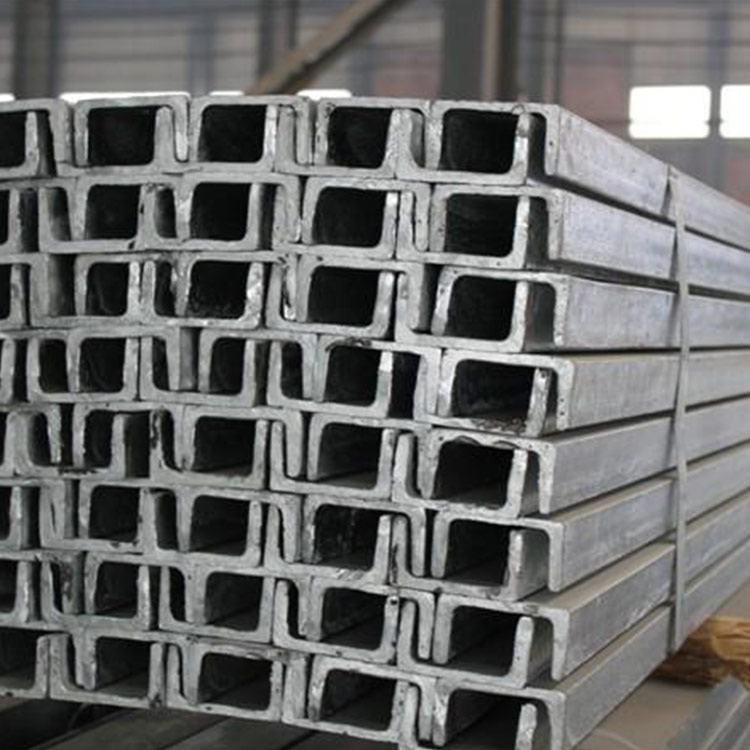

U Channel

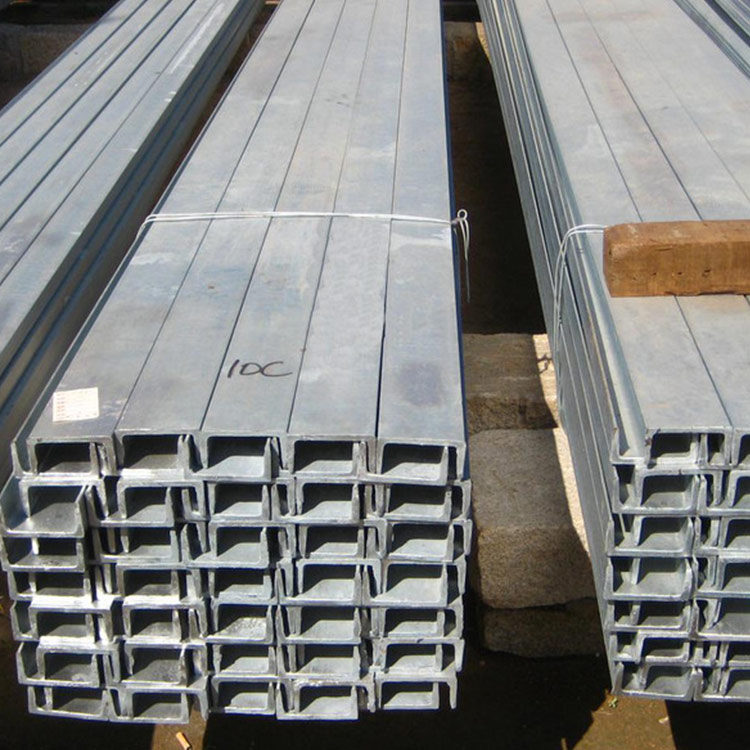

U Channel

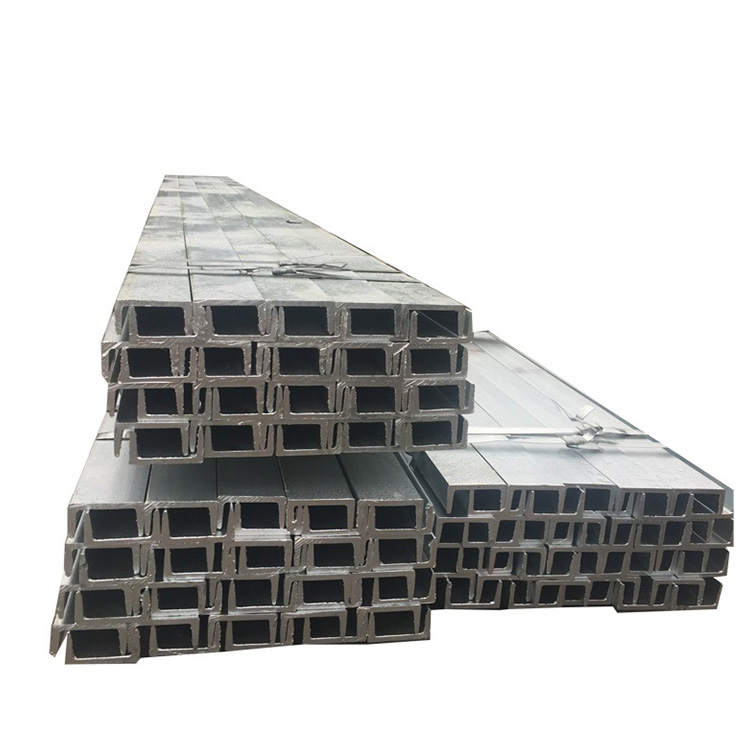

U Channel

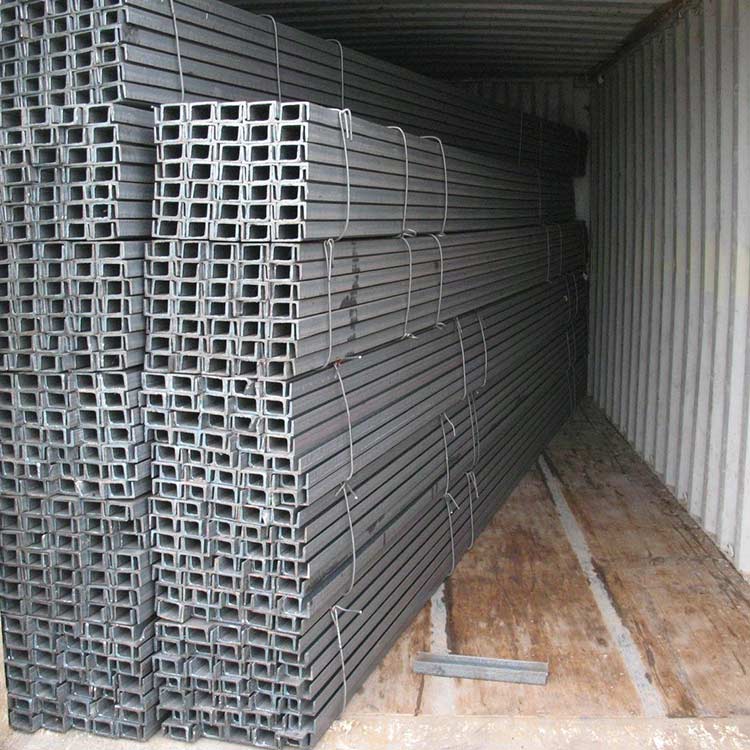

U Channel

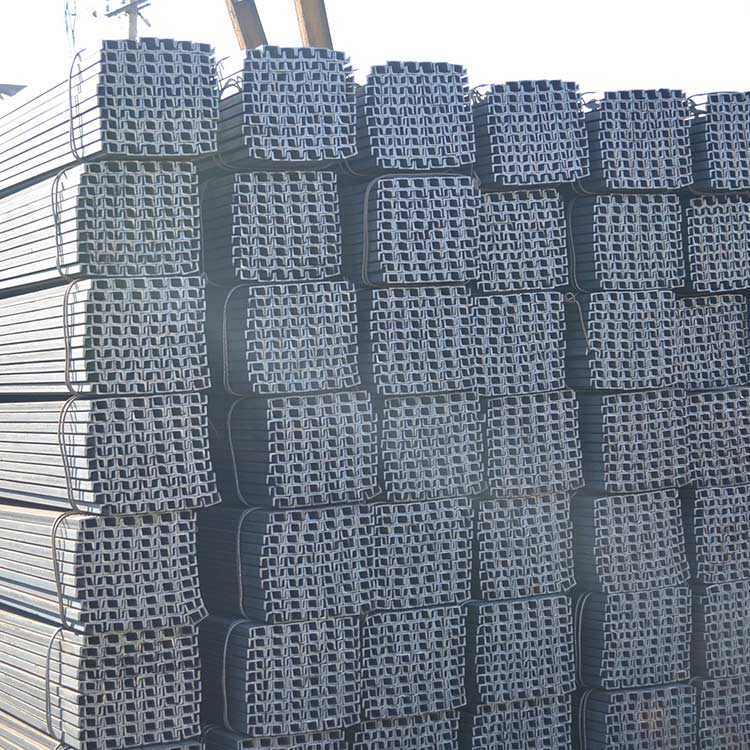

U Channel

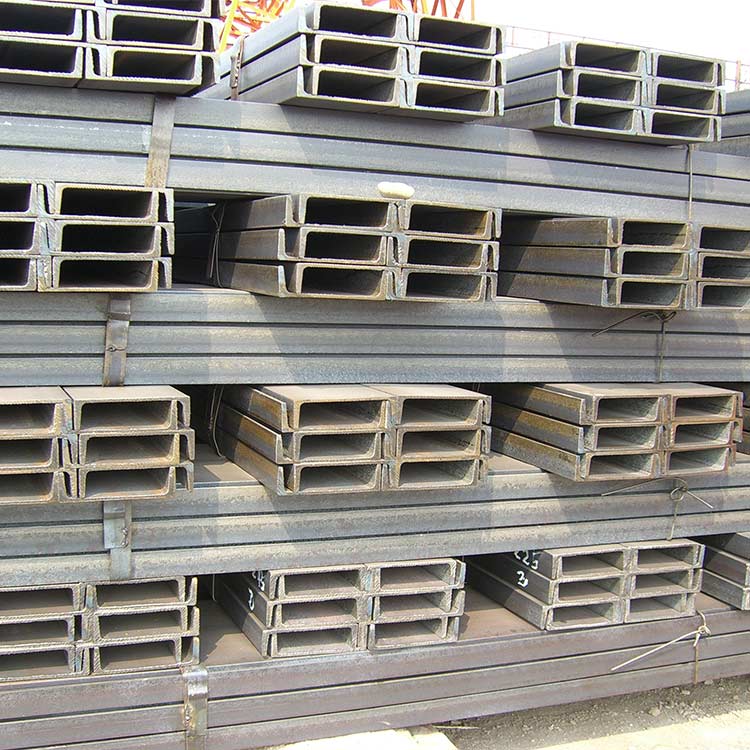

U Channel
